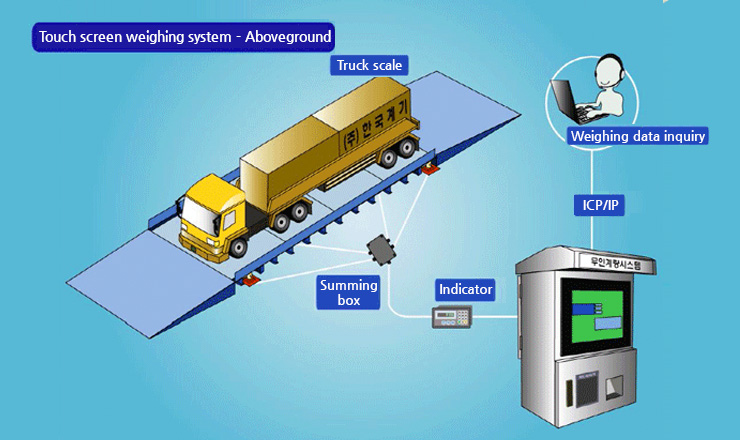

- Touch screen computer is mounted to realized manual specialized
system
- Weighing message is outputted to enable anyone to use easily
- Weighing data inquiry, output, and edit can be possible on network
environment
- Automatic weighing is possible by using the RFID card
- Thermal printer mounted.
- Various settings such as panel fan, heater, lamp, announcement, and
number of metric table are possible.
- Quick fault recovery is supported through remote service
- 터치계량판넬구성
- 이동무인터치계량판넬구성
※Option
Panel protection post - For preventing vehicle impact
Server client support system
|
|
 |
|
 |
|
| Maximum indication (ton) |
Grid value (kg) |
Platform (mm) |
Applied vehicle |
| 30 |
5 |
2,400 * 6,700 |
5 ton major axis |
| 50 |
10 |
3,000 * 9,000 |
11 tons~25 tons |
| 50 |
10 |
3,000 * 10,000 |
25 tons |
| 50 / 60 |
10 |
3,000 * 15,000 |
Trailer |
| 50 / 60 |
10 |
3,000 * 16,000 |
Trailer, bulk |
| 50 / 60 / 80 |
10 |
3,000 * 18,000 |
Pull car |
| 80 / 100 |
10 / 20 |
3,000 * 20,000 |
Special major axis, etc. |
| 200 |
50 |
3,000 * 22,000 |
Truck, heavy vehicle, etc. |
| 300 |
100 |
3,000 * 24,000 |
Special, truck, heavy vehicle, etc. |
|
