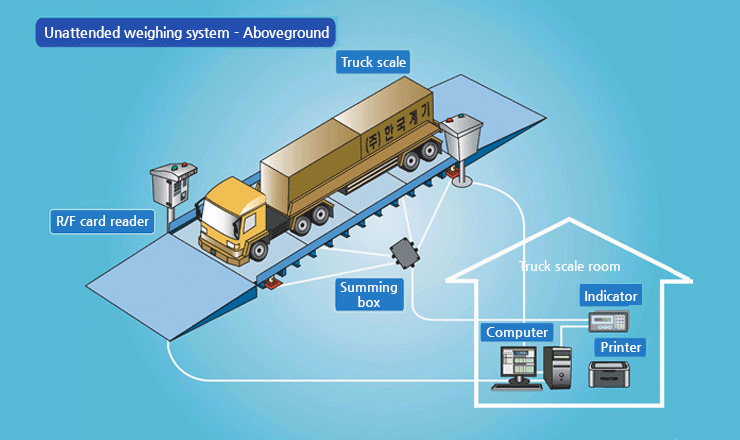

  • Truck ScaleAboveground - Unattended weighing system

Features
1. The weighing is automated to secure efficiency and reliability.
2. Quick weighing is possible in fields with high demand for weighing to minimize the inconvenience.
3. Weighing data can be easily inquired in network connection environment.
4. Various report forms are supported and customized system is constructed.


Composition
  • LED lamp
    Can be used in nightime, and timer can be set in the software.
    LED type to have semi-permanent lifespan
  • Information such as current weight, vehicle number, actual weight, and communication status are indicated.
  • Thermal printer adopted.
    Convenient and easy paper exchange
  • Automatic operation of the fan and heater according to the ambient temperature
  • Panel and weight status are indicated in image to be identified easily.
  • Various settings such as panel fan, heater, lamp, announcement, and number of metric table are possible.
  • Quick fault recovery is supported through remote service
¡ØOption

Panel protection post - For preventing vehicle impact¿ë
Electric sign for weighing information - High-intensity full-color electric sign
Server client support system



Installation cases
Daesun Flour Mills - Asan Seonam Environment - Seoul Seonam Environment - Seoul

Seonam Environment - Seoul Environment Corporation - Incheon Songdo DSC-India


Specifications

Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
