Truck ScaleUnderground - 900MHZ Unattended weighing system

Features

1. Certain range of 900MHz signal is released, and when the vehicle with the card approaches, the weighing is complete after the steady signal.
2. Various functions such as signal intensity, and setting time can be managed through the weighing software.
3. Facility is simple, and installation is possible without external limitations.
4. Weighing without delay is secured through the weighing message outputted in the electric sign.

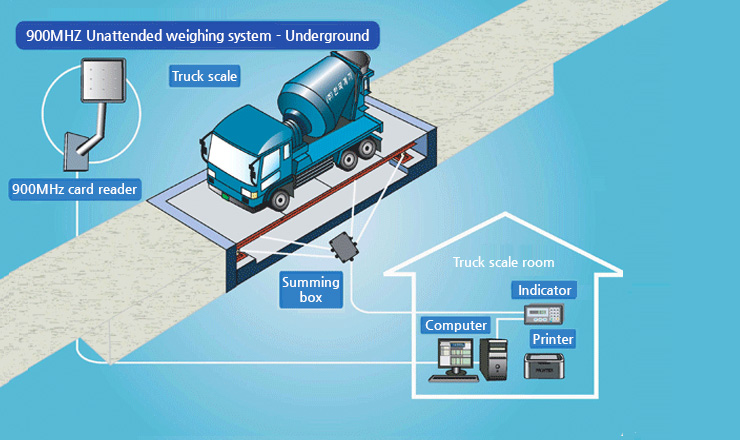

Composition

Installation cases


Korea Express-Incheon Port	Korea Express-Incheon Port	Taeyoung Terminal-Pyeongtaek Port


Paldo-Naju	Umicore - Cheonan	Paldofood - Changnyeong

Specifications

Maximum indication (ton)	Grid value (kg)	Platform (mm)	Applied vehicle
30	5	2,400 * 6,700	5 ton major axis
50	10	3,000 * 9,000	11 tons~25 tons
50	10	3,000 * 10,000	25 tons
50 / 60	10	3,000 * 15,000	Trailer
50 / 60	10	3,000 * 16,000	Trailer, bulk
50 / 60 / 80	10	3,000 * 18,000	Pull car
80 / 100	10 / 20	3,000 * 20,000	Special major axis, etc./td>
200	50	3,000 * 22,000	Truck, heavy vehicle, etc.
300	100	3,000 * 24,000	Special, truck, heavy vehicle, etc.
