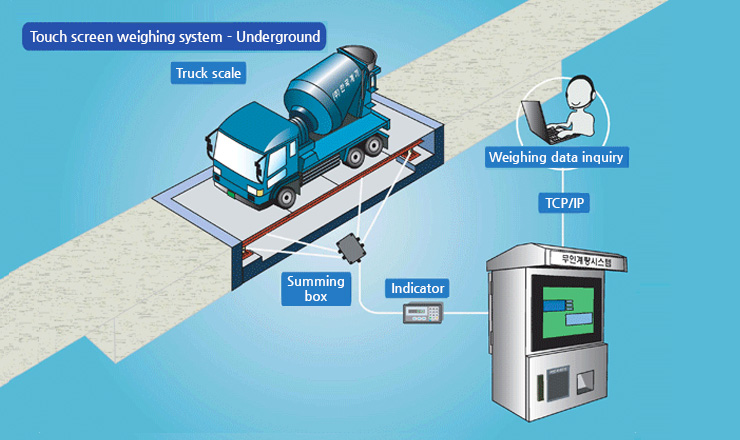

  • Truck ScaleUnderground - Touch screen weighing system

Features
1. Automatic panel including the manual function in the auto weighing system.
2. Touch computer is built in and separate computer is not required.
3. In the case of having many items related to weighing, weighing can be done by moving with the touch button.
4. Various report forms are supported and customized system is constructed.


Composition
  • Touch screen computer is mounted to realized manual specialized system
  • Weighing message is outputted to enable anyone to use easily
  • Weighing data inquiry, output, and edit can be possible on network environment
  • Automatic weighing is possible by using the RFID card
  • Thermal printer mounted.
  • Various settings such as panel fan, heater, lamp, announcement, and number of metric table are possible.
  • Quick fault recovery is supported through remote service
  • 터치계량판넬구성
  • 이동무인터치계량판넬구성
※Option

Panel protection post - For preventing vehicle impact
Server client support system



Installation cases

Hawjang - Haman Hawjang - Haman Yulchon Chemical - Poseung



Specifications

Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5 ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
