Products

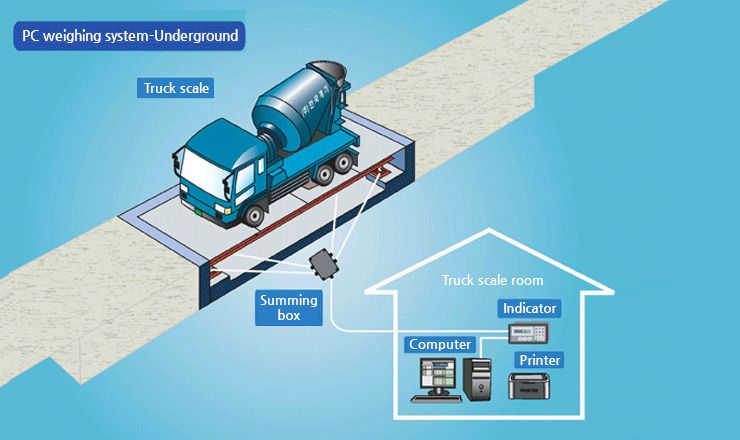

  • Truck ScaleUnderground - PC weighing system

Features
1. 32-bit application for Windows
2. Developed based on paradox/Dbase Database engine to secure DATA stability.
3. Input is coded for simple and convenient use.
4. Various reports and metric tables according to user's needs can be printed.


Composition
  • Simple design and various shortcut keys are configured to be produced for user's convenience.
  • The result value can be printed based on various search options such as date, client, item name, vehicle number, and input / output.
  • Conversion to Excel function is added to enable efficient management on the data.
  • The client code and item code function enhanced the convenience in input, and recent client and item are automatically produced when inputting the vehicle number to minimize the input.
※Option

Can be converted to Excel
Server client support system



Installation cases

Hyundai Development Company
-Pyeongtaek Port
SK-Suwon Sebang-Gwangyang Port

Purina feed - Pyeongtaek Hyundai Development Company-Masan Port Sebang-Donghae Port


Specifications

Maximum indication (ton) Grid value (kg) Platform (mm) Applied vehicle
30 5 2,400 * 6,700 5ton major axis
50 10 3,000 * 9,000 11 tons~25 tons
50 10 3,000 * 10,000 25 tons
50 / 60 10 3,000 * 15,000 Trailer
50 / 60 10 3,000 * 16,000 Trailer, bulk
50 / 60 / 80 10 3,000 * 18,000 Pull car
80 / 100 10 / 20 3,000 * 20,000 Special major axis, etc.
200 50 3,000 * 22,000 Truck, heavy vehicle, etc.
300 100 3,000 * 24,000 Special, truck, heavy vehicle, etc.
