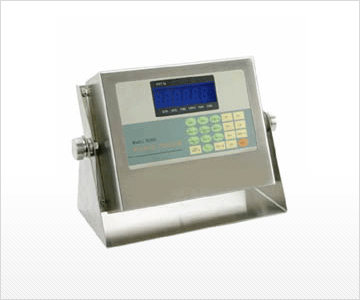

인디케이터 D2002

제품설명 및 특징
  • Communicative format between digital load cell and indicator
  • Wall mounting type
  • 10 keys(including ten keys)
  • Installed(Current loop)
  • Standard external output(4 contactors)
  • 256 group-printing records can be stored
  • Applications: Digital truck scale, Digital packer scale, Digital platform scale, Digital hopper scale, etc.
Dimensions
  • Net Dimensions: 310 × 80 × 220mm
  • Dimensions with bracket: 330 × 150 × 235mm
Option
  • Serial interface : RS-485
  • printer
  • PC
GRADE
UNITS

Rated Capacites
kgf
10tf, 25tf, 30tf
Total error
Creep for 30minute
Temperature zero value shift
Temperature output value shift
%
%
%/10℃
%/10℃
0.02
0.02
0.01
0.02
Excitation
Recommended
Maximum
Power source
Power consumption
Measuring rate
Asynchrone interface
Baudrate
Display
Span calibration
Number of bus adresses
Maximum transmitting distance
Limit load
Operating temperature range
V DC
V DC
V
W
Times/sec

BPS


EA
m
%

9-12
20
AC200~240V, 50Hz
Approx. ≤50
50
RS-485 / 5-Wire
9600
VFD 7digit
Full digital calibration
max.32
1200
150
-30 to +70
