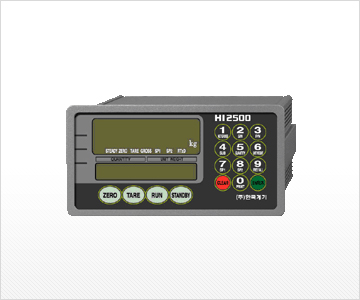

ÀεðÄÉÀÌÅÍ HI-2500 Á¦Á¶¾÷ü : (ÁÖ) Çѱ¹°è±â

Á¦Ç°¼³¸í ¹× Ư¡
  • Wacht-dog function installed for diagnostics
  • Data memory back up for over 10years
  • Front display window is coverd by lexan film for theprotecting of dust
  • Lock function for the protection of set-up mode
  • Automatiocally compensate for the falling error
  • Shield from noise by photo-coupler installed
  • Weight memory back up for up to 10years
  • 50 kind of parks number can be memorized
  • Can drive up to 8pcs load cell (350§Ù)
  • 3 Step control (PRESET1, PRESET2, PRESET3)
  • 6 Control relay built-in (SP1, SP2, SP3, FINISH, ERROR, NEAR ZERO)
  • Relay out mode (LIMITER, PACKER, DISCHARGE LIMITER, LOSS-IN MODE 1,2)
Dimensions
    Option
OP01 Printer I/F :
Centronics Parallel
OP02 Analog Out : Vout (0~10V)
OP03 Analog Out : Iout (0~10mA)
OP04 Serial I/F : RS422, RS485
OP05 BCD DATA OUTPUT
Model Hi-2500
Load Cell Exciation 10V DC¡¾5%, 320mA
Input Sensitivity 0.45 §Å/D
Zero Adjustment Range -0.6mA + 42.0mV
Combination of 6bit dip Switch
Input Voltage Max.32mV
Input Impedance 100M§Ù (Min.)
Input Noise + 0.6 §Å p.p or LESS
A/D Converter Type : Dual Slope Type
Resolution : 1/65,000 Counts (16Bit)
Converting Speed : 20 times/sec.
Non-Linearity 0.01% of full scale
Temperature - Drift ZERO ¡¾ 20 PPM/¡É
SPAN ¡¾ 20 PPM/¡É
Display Update Rate 20 times/ sec.
