• 로드셀

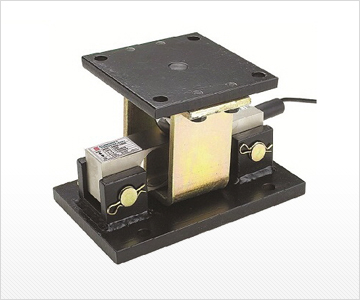

CDSB-BS 트럭스케일용

Features
  • Robust design and easy installation
  • Strong against shock or side force
Material
  • Nickel plated steel
Cable
  • Braided shield 4-wire round cable
    with PVC-jacket
Accessory Features
  • Appropriate for tank and truck scale application
  • High resolution by use of ball
  • Structurally safe design
  • High durability
  • Suitable for moisture environments
Manual
  • Check the load cell level with the surface

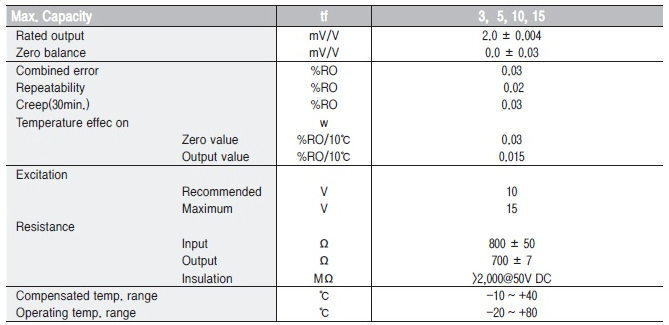

Specifications

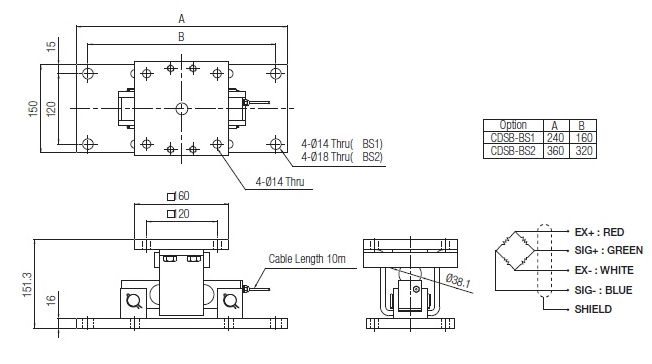

Dimensions
