• 로드셀

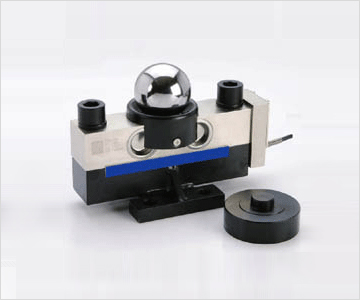

TSD 트럭스케일용

Features
  • Capacity range from 10,000 to 35,000kg
  • High precision, high reliability, super stability
  • The construction with steel ball and cap has many advantages in self-reposition place, certre-adjustment, anti-side force, anti-wallop
  • Easy installation, quite good exchangeability
  • Nickel plated alloy steel construction
  • PVC Wire jacket
  • Protection class IP68
  • D2001C/ D2002C weighting indicator
Specifications
GRADE
UNITS

Rated Capacites
kgf
10tf, 25tf, 30tf
Sensitivity(Cn)
Sensitivity tolerance
A/D Internal resolution
A/D External resolution

%
digit
digit
2000d/t, 1000d/t, 1000d/t
0.01
60,000
20000 / 25000 / 30000
Total error
Creep for 30minute
Temperature zero value shift
Temperature output value shift
%
%
%/10℃
%/10℃
0.02
0.02
0.01
0.02
Excitation
      Recommended
      Maximum
Measuring rate
Current consumption
Resolution
Asynchrone interface
Baudrate
Number of bus adresses
Maximum transmitting distance
Limit load
Operating temperature range

V DC
V DC
/sec
mA
Bit

BPS

m
%


9-12
20
50
35
24 ( 18 bit at 60Hz )
RS-485 / 5-Wire
9600
max.32
1200
150
-30 to +70

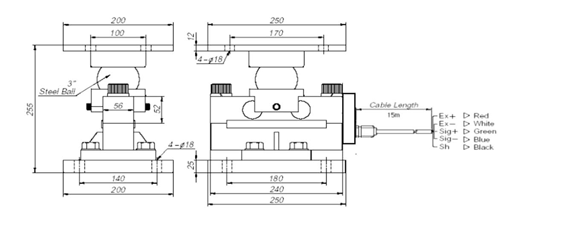

Dimensions
